Industrial and cold room doors

JSC BALTGINA present the industrial and cold storage doors produced of experience for over 15 years. Due to an advanced production technology, the product is highly regarded by our customers across Baltic states. Fiberglass reinforced plastic coating Glasbord ArmorTuf^® as composite with stainless steel frame guarantee light weight and durability of the all type doors. Using this unique materials with woven-roving fiberglass finishing - makes this product leading the way on the industrial and cold door manufacture market.

   This features impact resistance several times higher than door with stainless steel sheet - best resistance to various scratches and dents. Also the door leaf is twice as light as standard 0.5mm stainless steel sheet which significantly extends the service life of the door.

Sliding door 480TN ( ~0°)

• Door leaf thickness: 65 / 80 mm
• Polyurethane density: 45kg/m³
• Door leaf covered with Glasbord ArmorTuf^® thickness 1.6mm
• Door leaf edge: of 1.5mm stainless steel AISI304, termo-welded
• Sealing: with EPDM termo-gasket

• Doorpost frame: of reinforced PVC profiles
• Sliding door mechanism: of 2mm stainless steel profiles

• Door without threshold, with 3-leaf lower gasket

Sliding freezer door 480LWT (-18°/ -25° / -35°)

• Door leaf thickness: 100 / 120mm
• Polyurethane density: 50kg/m³
• Door leaf covered with Glasbord ArmorTuf^® thickness 1.6mm
• Door leaf edge of 1.5mm stainless steel AISI304, termo-welded
• Sealing: with EPDM double density termo-gasket

• Doorpost frame: of reinforced PVC profiles
• Sliding door mechanism: of 2mm stainless steel profiles
• Door without threshold, with 4-leaf lower gasket
• Heating cable 30W/m put inside door frame (and) gasket lower threshold niche on the ground

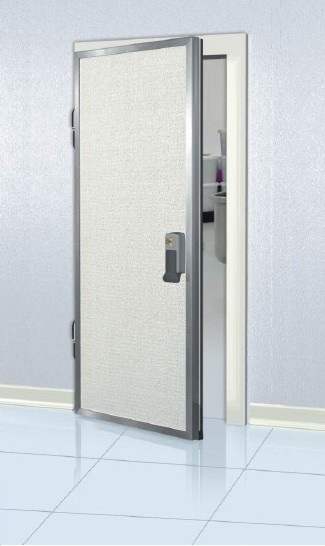

Cold storage door 500TN ( ~0°)

• Door leaf thickness: 65 / 80mm
• Polyurethane density: 45kg/m³
• Door leaf covered with Glasbord ArmorTuf^® thickness 1.6mm
• Door leaf edge: of 1.5mm stainless steel AISI304, termo-welded
• Sealing: with EPDM termo-gasket

• Doorpost frame: of reinforced PVC profiles
• The hinges and lock of composite materials
• Door without threshold, with 3-leaf lower gasket

       One and two leaf options.

Cold storage freezer door 500LWT / 604LWT ( -18°/ -25°/ -35°C)

• Door leaf thickness: 100 / 120 mm
• Polyurethane density: 50kg/m3
• Door leaf covered with Glasbord ArmorTuf® thickness 1.6mm
• Door leaf edge: of 1.5mm stainless steel AISI304, termo-welded
• Sealing: with EPDM double layer termo-gasket on 3 sides
• Doorpost frame: of reinforced PVC profiles
• The hinges and lock: of composite materials
• Door without threshold, with 4-leaf lower gasket
• Heating cable 30W/m powered at 220V and put inside the gasket (door 500LWT) / inside doorpost frame and lower threshold niche (door 604LWT)




* For the all doors mounting in the sandwich panels wall - extra 1mm thickness stainless steel edging

Industrial hinged door 340AM

• Door leaf thickness: 40mm
• Polyurethane density: 43kg/m³
• Door leaf covered with Glasbord ArmorTuf^® thickness 1.6mm
• Door leaf edge: of 1.5mm stainless steel AISI304, termo-welded
• Sealing: with EPDM gasket on 3 sides of frame

• The hinges and lock of stainless steel
• Optional: hatch with frame of gum or stainless steel edging
• Door without threshold

       * One and two leaf option.

Swing door 140AM

• Door leaf thickness: 40mm
• Polyurethane density: 43kg/m³
• Door leaf covered with Glasbord ArmorTuf^® thickness 1.6mm
• Door leaf edge and doorpost frame - of 1.5mm stainless steel AISI304, termo-welded
• Sealing: with EPDM vertical gasket
• Protection: optional 1~3pcs. of 20cm width polyethylene bumpers
• The standard hinges or stainless steel, with fixing function 90° STOP
• Standard window 30x70cm made of polycarbonate with the frame of gum

• Door without threshold

         * One and two blade option.



         ALL THE DOORS SUPPLIED BY CUSTOMER SUBMITTED DIMENSIONS !
